Product Details
- Amazon Sales Rank: #29456 in Lawn & Patio
- Brand: Bosch
- Model: DWM100M6-24
- Dimensions: 21.00" h x
1.40" w x
47.00" l,
20.00 pounds
Features
- 100 Watt 12 Volt Mono Crystalline CE, UL, IEC and TUV Certified
- Panel size - Length x Width x Height (47 in x 21 in x 1.4 in)

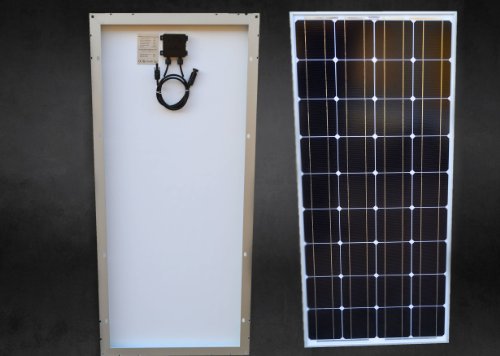

- Panel is made from 36 (125mm x 125mm) Mono Crystalline Solar Cell - Frame Material: Anodized Aluminium alloy - Low Iron Tempered Glass
- Grade A Mono Crystalline Photo-voltaic Cells manufactured by Bosch - ISO 14001 Certified
- Diode - MC4 Connector for easy Plug and Play
Bosch Solar Panel 100 Watt 12 Volt- Mono crystalline - A Grade - MC4 Connector - Diode
Product Description
PV Modules Technical Parameter: (Stand Test Conditions: 1000W/m2, AM1.5, 25?) BSH-100-24-125X125-M Mono crystalline Solar Cell, Maximum Power 100 Watts, Optimum Operating Voltage 18.56V, Optimum Operating Current 5.39A, Open-Circuit Voltage 22.10V, Short-Circuit Current 5.50A, Cell Efficiency 17.9% Module Efficiency 15.8%, Module Weight 20 lbs Maximum, System Voltage 1000V, Temp.coefficient of ISC -0.35%/?, Temp.coefficient of VOC 0.05%/?, Temp.coefficient of Pmax -0.45%/? Nominal, Operating Cell Temperature 47?(+2?) Surface, Maximum Load Capacity 60m/s(200kg/sq.m) Allowable Hail Load 227g steel ball fall down from 1m height, 25 Years Performance guaranteed!
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
By Zack
This product which I bought is extremely high quality and affordable price. These panels comes with MC4 connectors. High performance under reduced sunlight or cloud effect.
