Product Details
- Brand: Everbright Solar
72 Tested Multi 6x6 Solar Cell 3.0w -3.5w DIY Solar Panel Kit w/Wire Flux Diode
Product Description

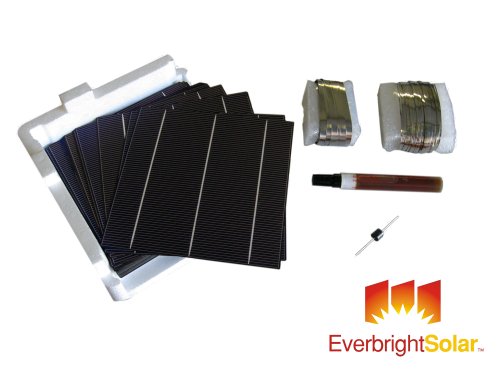

Tested 72 pcs Multi Crystalline 6x6 Solar Cells DIY Panel Kit
I. Cells: 72 pieces plus some bonus solar cells
The standard cell specifications are the following, though the individual cells can be above or below these standards.
Power: 3.0w to 3.5w
Materials: Multi crystalline silicon
Bus bars: 3
Size: 156x156x0.2mm square, or 6x6 inches
Color: Dark blue
Origin: Major Western manufacturer
Voc=0.603-0.610
Isc=7.501-7.943
Vm=0.454-0.468
Im=6.689-7.214
Weight: Just above 12 grams
II: Tabbing wires: 240 feet of tabbing wires to connect the solar cells. Cut them into 6 inch sections to solder onto the bus bars on the cells.
III: Bus wires: 24 feet of bus wires. Use them to connect them between the series and connect the tabbing wires ends to the junction box at the back of the panel.
IV: Flux: an easy-to-use flux pen that dispenses flux onto the bus bar or your tabbing wires without leaving a mess. It's used to aid soldering and bonding of the wires to the cells. A must have item.
V: Diodes: 2 diodes rated at 15 amp. Schottky style diodes.
