Product Details
- Amazon Sales Rank: #437246 in Home Improvement
- Brand: American Science & Surplus
- Dimensions: 4.40 pounds
Features
- Mono-crystalline cells
- 15W rated power at 12V operating voltage
- Heavy-duty Anodized Aluminum frame
- Use in conjunction with solar power controllers

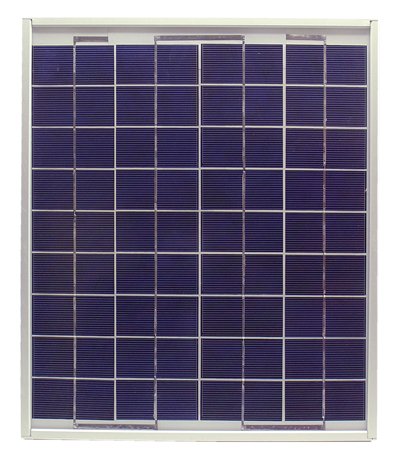

Mono-crystalline Solar Panel - 12Volts / 15Watts
Product Description
"A heavy-duty anodized aluminum frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. Mono-Crystalline cells are up to 20% efficient and is said to have a service life of about 25 years.
Output Power(peak): 15W
Max Power Voltage(Vmp): 17.6v
Max Power Current(Imp): 0.85A
Open Circuit Voltage(Voc): 21.6v
Short Circuit Current(ISC): 0.92A
Working Temperature: -45C to +85C
Tolerance: ±5%
Size: 340x400x28mm
Recommended Controller: 12V-5A"
When using a solar panel to charge a battery, a Solar Charge Controller is required and sold separately.
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.SOLAR PANEL ELECTRICAL ENHANCEMENT
By Gerald Wallace
Due to the replacement of my solar hot water tank and an upgrade to the flow control valve(increased flow) I decided that I needed an additional solar electrical source - panel. (My old solar system used two 10 watt solar panels for the power source which now was inadequate). I added the subject panel (Mono-crystalline 15 watt panel)to drive/match the capacity of the new flow control valve. The results: every thing works as expected - I have not had any problems with the flow or expected output in the last 17 months. Again, this means the subject panel works as expected.
