Product Details
- Amazon Sales Rank: #206937 in Lawn & Patio
- Brand: Renogy
- Model: RNG-240P
- Dimensions: .8" h x
1.57" w x
2.56" l,
41.90 pounds
Features
- 2pcs of 240W Polycrystalline Solar Panels Charge 24V battery
- Guaranteed & Positive Output Tolerance (0-3%)
- Delivered ready for connection & Fast and inexpensive mounting
- Withstand high wind (2400 Pa) and Snow loads (5400 Pa) & Excellent performance in low light environments
- Quality Insured By CHUBB: General liability/Errors and Omissions Liability

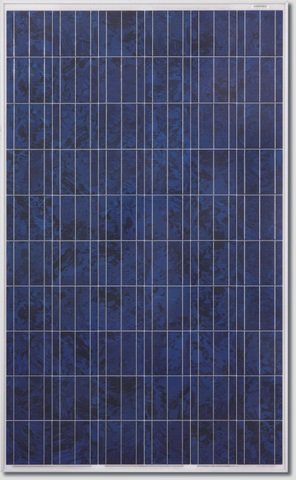

2pcs Premium Renogy 240 Watt Solar Panel-25 Years Warranty/Made-In-USA Solar Cells
Product Description
Electrical Specifications Optimum Operating Voltage (Vmp): 31.2 V Optimum Operating Current (Imp): 7.69 A Open - Circuit Voltage (Voc): 37.2 V Short- Circuit Current (Isc): 8.34 A Maximum Power at STC: 240 W Operating Module Temperature: -40°C to + 90°C Cell Efficiency 16.9% Module Efficiency 14.69% Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC) Maximum Series Fuse Rating: 15A STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5; Mechanical Specifications Solar Cell: Poly-crystalline 156 x 156 mm (6 inches) No. of cells: 60 (6 x 10) Dimensions: 65 x 39 x 2.0 in (1650 x 990 x 50 mm) Weight: 41.9 lbs (19.0 kg) Front Glass: 3.2 mm (.13 in) tempered glass Frame: Anodized aluminum alloy Junction Box: IP67 rated Output Cables: 4.0 mm2 (.006 in2), 1000mm(39.4inches) Connectors: MC4 compatible UL Listed: UL 1703 Fire Rating: Class C
