Product Details
- Amazon Sales Rank: #252298 in Lawn & Patio
- Brand: UL SOLAR
- Model: STP100P
- Dimensions: 26.30" h x
1.38" w x
39.90" l,
23.00 pounds
Features
- Dimension: 39.9in x 26.3 in x 1.38in
- Weight: 22 lbs
- Maximum power voltage (Vpm): 18.6 Volt
- Maximum power current (Ipm): 5.38 Amp

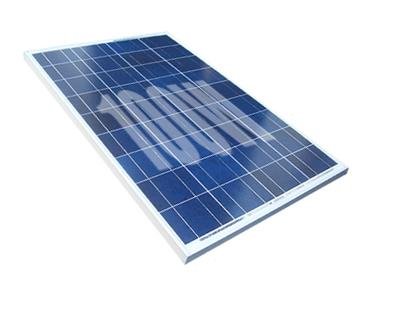

UL SOLAR 100 Watt 12 Volt Polycrystalline Silicon Solar Panel
Product Description
Power at STC(Pm): 100 WATT
Maximum power voltage (Vpm): 18.6 Volt
Maximum power current (Ipm): 5.38 Amp
Open circuit voltage (Voc): 22.8 Volt
Short circuit current (Isc): 5.76 Amp
Tolerance: ±5%
Cell: polycrystalline silicon Solar cell,
Cell Size: 156mm x 104mm
Dimension: 39.9in x 26.3 in x 1.38in
Standard Test Conditions: temperature 25°C, Irrandiance 1000W/M², AM=1.5
Maximum System Voltage 1000V DC
Series Fuse Rating 10A
Temperature coefficient ISC: 0.05%/K Voc:-0.36%/K Pmax:-0.46%/K
Operating Temperature - 40°C to + 85°C
Storage humidity: less than 90%
Out put terminal Junction box IP65
Cable length 3 ft
