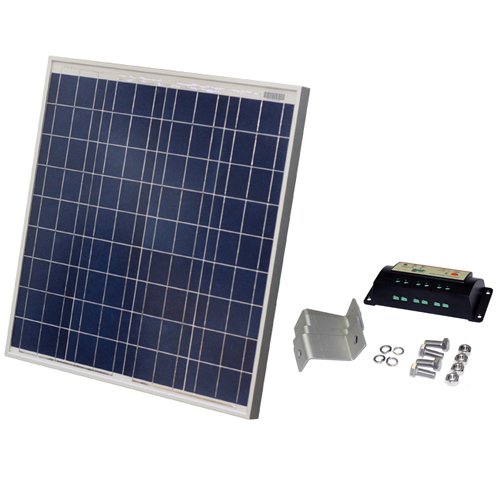

Solar Panel 60W Poly Crystalline 12V Solar Cells with Controller and Hardware
Code : B0062QRBKI
Category :
Rating :
* Special discount only for limited time
Product Details
- Amazon Sales Rank: #391773 in Home Improvement
- Brand: PK Solar
- Dimensions: 16.00 pounds
Features
- Cell Type: Polycrystalline Silicon.
- Power Tolerance Range (%): +/-3%.
- Open Circuit Voltage / Voc (V): 22.0
- Max Power Voltage / Vmp (V): 18.1
- Short Circuit Current / Isc (A): 3.60
Solar Panel 60W Poly Crystalline 12V Solar Cells with Controller and Hardware
Product Description
Specifications
- Model NO: PKP-60
- Cell Type: Polycrystalline Silicon
- Peak Power (Pmax): 60Wp
- Power Tolerance Range (%): +/-3%
- Open Circuit Voltage / Voc (V): 22.0
- Max Power Voltage / Vmp (V): 18.1
- Short Circuit Current / Isc (A): 3.60
- Max Power Current / Imp (A): 3.20
- UL Certified: E309468
- Max System Voltage (V): 1000V DC
- Operating Temperature: -40C to +85C
- Front Glass: 3.2 mm tempered
- Junction Box: IP-65 rated
- Cable Length: 3 FT W/ MC4 connectors
- Frame: Anodized Alumimum Alloy 6063-T5
- Back Foil: White PET (0.2+0.03mm thickness)
- Max Load: 5400 Pa
- Encapsulation Material: EVA (0.5+0.5mm thickness)
- Dimensions (inches): 25.7x26.3x1.38
- Warranty: 25 Years
- Nominal System Voltage 12/24VDC Auto work
- Maximum PV input voltage 50V
- Maximum Battery Voltage 32V
- Charge Circuit Voltage Drop 0.26V
- Discharge Circuit Voltage Drop 0.15V
- Self-consumption 6mA
- Temperature Compensation -30C/12V
Features
- - Temperature Sensor
- - Charging status LED indicator
- - Battery status LED indicator
- - Flooded battery indicator
- - Gel battery indicator
- - Sealed battery indicator
- - Load status indicator
- - Setting Button
- - Solar module terminals
- - Battery Terminal
- - Load terminals
Customer Reviews
Most helpful customer reviews
See all customer reviews...
Solar Panel 60W Poly Crystalline 12V Solar Cells with Controller and Hardware. Reviewed by Jake B. Rating:
