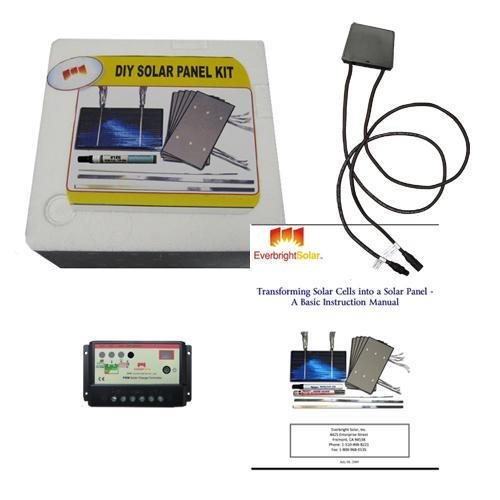

Learn How- Solar Cells Do-It-Yourself (DIY) Solar Panel Kit + Junciton Box 25amp + Charge Controller
Product Description
Learn How- Solar Cells Do-It-Yourself (DIY) Solar Panel Kit + Junction Box
Learn to make a 60 watt solar panel by yourself with this Solar Cells DIY Solar Panel Kit. We provide instruction manual with this kit. This 60 watt DIY solar panel kit has been used by many educational institutes in the US.
Solar DIY Panel Kit Technical Data:
The following is a little more details regarding this kit: (cells, tabbing wires, bus wires, flux pen, diodes and solder)
I: Cells: 36 pcs fully tabbed cells plus bonus cells
The standard cell specifications are the following, though the individual cells can be above or below these standards.
Cell Specifications:
Average Power (Watts): 1.75 Wp
Average Current (Amps): 3.5 Imax
Average Voltage (Volts): 0.5 Vmax
Thickness 200 ìm = 0.2 mm
Exact dimension: 3 1/4 inches x 6 inches, or 80 mm by 150 mm
Weight: Just above 6 grams, or 0.2 oz.
II: Tabbing wires: 5 feet tabing wire to connect the solar cells. Cut them into 6 inch sections to solder onto the bus bars on the cells.
III: Bus wires: 5 feet of bus wires. Use them to connect them between the series and connect the tabbing wires ends to the junction box at the back of the panel.
IV: Flux: an easy-to-use flux pen that dispenses flux onto the bus bar or your tabbing wires without leaving a mess. It's used to aid soldering and bonding of the wires to the cells. A must have item.
V: Diodes: 1 diode rated at 15 amp. Schottky style diodes.
VI: Junction Box: 1 junction box, 25 amps with 3 feet wire, US made.
VII: Charge Controller: 1 standard charge controller, 10 amps, 12volt.
100% Satisfaction Guaranteed!
