Product Details
- Brand: PEC
- Model: Eco-120-Float
- Dimensions: 24.00" h x
48.00" w x
48.00" l,
Features
- 24/7 battery charging system or daylight only operation up to 1.1 cfm with UL listed 125 watt Solar Panel.
- Permanently lubricated, high volume, continuous duty compressor includes wiring harness & 30 amp charge control center.
- 24" EPDM non-clogging maintenance free fine bubble diffuser & 100' of 1/4" weighted flexible air tubing
- Customers furnish two 1 5/8" steel galvy pipe extensions 8-10 feet length for mounting deck
- 1 year bumper-to-bumper, 2 year pump & electrical, and 5 year solar panel warranty.

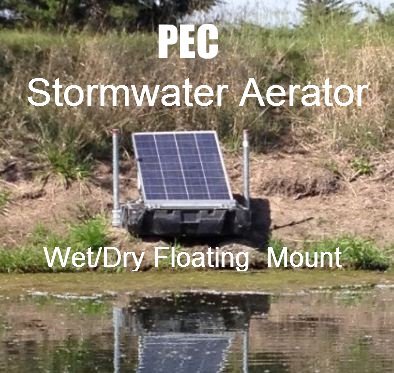

Eco-Aerator Floater - Solar Aerator for 1 acre fish ponds - Daylight Only Operation - Waybac Machine Stops Fish Kills
Product Description
The Eco-Aerator shown here is all the aeration you need to clean and stimulate your 1 acre, 10 foot deep lagoon, lake bed, or retention pond.
Biologists at Inks Dam National Fish hatchery in Austin, Texas, have completed their pilot studies and now know the optimum size and power requirements for aerating one-acre ponds using solar power.
By combining a 120-watt photovoltaic
panel and efficient deep water air pump
and 9" air diffuser they found it mixes the entire pond and maintains high and constant oxygen levels.
Initially, PEC worked with Inks Dam NFH using three smaller solar powered pond aerators in 1/4 acre ponds to replace high powered, high maintenance, noisy, paddlewheels.
Continuing Inks Dam NFH solar aerator studies in a one acre pond created a a larger more energy efficient system.
The PEC Eco-Aerator is based directly on these studies incorporating a permanent wet/dry floating mount, a 24" fine bubble epdm air diffuser, and 5 cfm air pump.
Our solar array is mounted on a low profile aluminum frame attached to a 3 ft x 4 ft deck and placed anywhere, on land or water, wet or dry.
Assembly is easy in minutes.
Simply secure the deck with the included auger tipped, coupled pipes, facing an unobstructed southern sky.
Next, unfold the solar panel and center the diffuser (drag or drop) on the pond bottom, up to 100 feet away from the mount. Unit operates in full sun for up to 8 hours per day. It is also available with an upgrade power saver kit to operate nearly contiuously.
If you can open the box you can setup this unit and secure the SFD dock with a long handled pipe wrench to screw the augered pipes into the shorline bottom.
Pump Specs: Two, 12V, 35 watt, 0.10 MPa, 2.5 cfm with replaceable inlet air filters.
Shipping: One 52x48x15", box and one 24x18x18", box. Both boxes fit easily in car backseat/trunk area.
