Product Details
- Amazon Sales Rank: #226778 in Lawn & Patio
- Brand: Joko
- Model: GTI-500W
Features
- Gird Tie Inverter 500W
- On Grid Inverter 500W
- Pure Sine Wave Inverter 500W
- Power Inveter

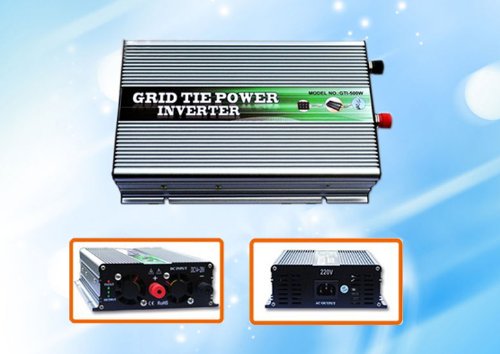

Joko 500w Grid Tie Inverter for Solar Panel 14v-28v Dc -230v Ac
Product Description
Feature:
-Reverse polarity protection. When connected incorrect AC input, inverter will alarm to avoid damage.
- The DC input will cut off automatically at night to avoid the current reverse. And it will switch on when the DC come in at daytime.
- Maximum Power Point Tracking (MPPT) will optimize the power output.
- Stackable (connect in parallel for higher output, and the output will not be affected by single panel)
- Island protection: Inverter will shut down during black outs.
- LED indicators reflect the power output rate
- Grid-Tied - sells surplus power directly back to the grid at a premium rate (depends on your location)
- Generates pure Sine Wave
- Plug and Play Design, simply plug into an outlet (GFI), no hard-wiring
- Simple and safe installation
- Constant Power Output
- Low distortion output on all ranges
- Allow different Power factor from loads
- Not require rewiring of existing electronics
-Suitable for family used small system (panel)
- Poor performance of one of the solar panels would not affect the performance of the other units in the whole System
Specifications:
Model GP-350W
Normal AC Output Power 450W
Maximum AC Output Power 500W
AC Output Voltage Rang
110v or 230v, it does not both in one inverter 90v~130v,190V ~ 260V
AC Output Frequency Range 46Hz ~ 65Hz Total Harmonic Distortion(THD)
<5%
Power Factor 0.99
DC Input Voltage Range 14V ~ 28V
Peak Inverter Efficiency 95%
Standby Power consumption <0.5W
Output Current Waveform Pure Sine- wave
MPPT Function Yes
Over Current Protection Yes
Over Temperature Protection Yes
Reverse Polarity Protection Yes
Island Protection Yes
Stackable Yes
Operating Temperature Range
-10 0C ~ 45 0C
N.W. 1.8Kg G.W 2.1 Kg
Dimension 330mm*210mm*95mm
Note: Generally 24v solar panel rated voltage is 36v, so pls DO NOT connect your 24v solar panel to this inverter, because the inverter input is 14-28v, otherwise the inverter will be burnt.
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
By James Paicopolos
It is working ok. It tied in nicely to the solar panels and so far it is working well for my system.
