Learn How- Solar Cells Do-It-Yourself (DIY) Solar Panel Kit + Solar Encapsulation Kit
Product Description

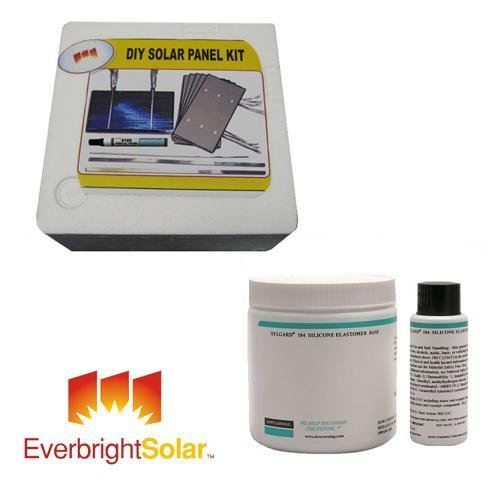

Learn How- Solar Cells Do-It-Yourself (DIY) Solar Panel Kit + Solar Encapsulation Kit
Learn to make a 60 watt solar panel by yourself with this Solar Cells DIY Solar Panel Kit. We provide instruction manual with this kit. This 60 watt DIY solar panel kit has been used by many educational institutes in the US.
Solar DIY Panel Kit Technical Data:
The following is a little more details regarding this kit: (cells, tabbing wires, bus wires, flux pen, diodes and solder)
I: Cells: 36 pcs fully tabbed cells plus bonus cells
The standard cell specifications are the following, though the individual cells can be above or below these standards.
Cell Specifications:
Average Power (Watts): 1.75 Wp
Average Current (Amps): 3.5 Imax
Average Voltage (Volts): 0.5 Vmax
Thickness 200 ìm = 0.2 mm
Exact dimension: 3 1/4 inches x 6 inches, or 80 mm by 150 mm
Weight: Just above 6 grams, or 0.2 oz.
II: Tabbing wires: 5 feet tabing wire to connect the solar cells. Cut them into 6 inch sections to solder onto the bus bars on the cells.
III: Bus wires: 5 feet of bus wires. Use them to connect them between the series and connect the tabbing wires ends to the junction box at the back of the panel.
IV: Flux: an easy-to-use flux pen that dispenses flux onto the bus bar or your tabbing wires without leaving a mess. It's used to aid soldering and bonding of the wires to the cells. A must have item.
V: Diodes: 1 diode rated at 15 amp. Schottky style diodes.
VI: Sylgard 184 Solar Cells Encapsulation Kit: Sylgard 184 silicone elastomer base and Sylgard 184 silicone elastomer curing agent. You simply mix these two bottles together, wait for few minutes, and it will be ready to use. It is clear liquid, good strength, UL and Mil Spec, same as SYLGARD® 182 but with faster RT cure.
100% Satisfaction Guaranteed!
